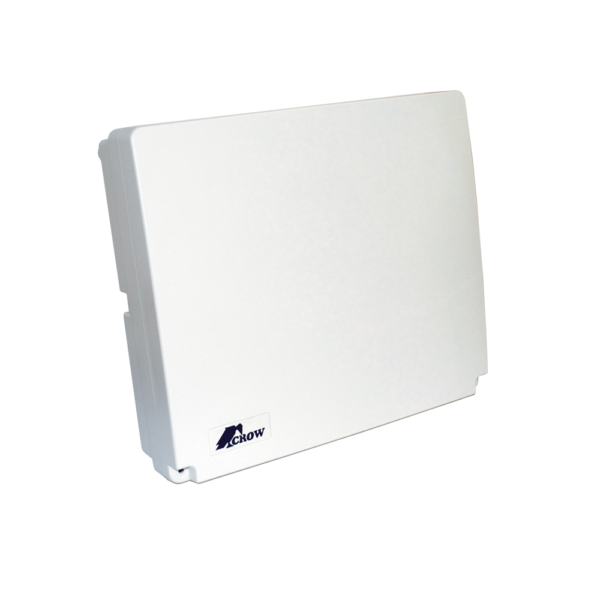

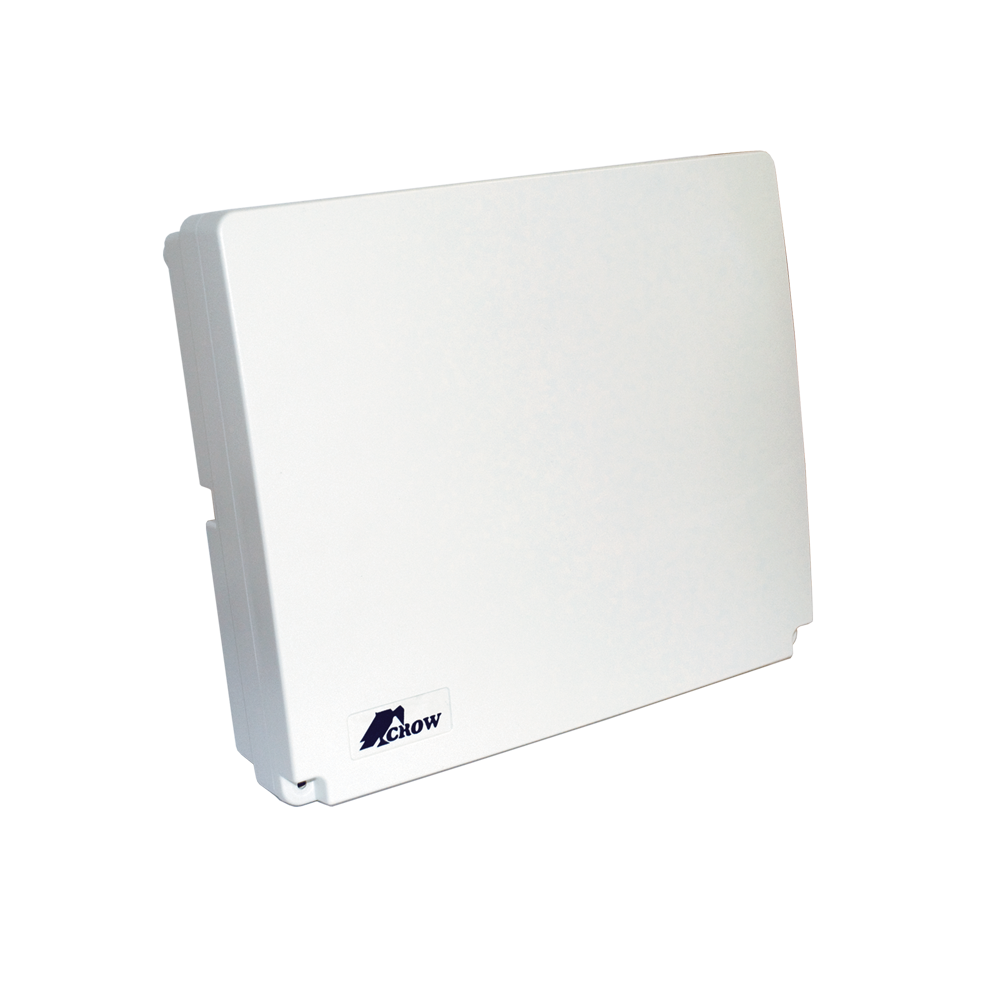

8-16 Zones Hybrid Panel Alarm Residentialcommercial, Wireless Receptor not Included, Supplied with LEDs, Keypad and 2 Digital Motion Detectors NEOQUAD

System:
-Programming option with the 16 zone icon keypad.
-Programming option from USB cable to a pc (cabled not included, requires software).
-Programmable through modem with the upload and download software.
-8 keypads max.
-Connect CROW proximity readers.
-Entry and exit timers defined by the installer.
-Functions: Auto-arm and disarm.
-2 partitions.
-Memory: 255 events the last events can be seen in the icons keypad.
-2 PGM open collector type outputs 1.5 A to each one, any of them can be a siren output
-Phone cut line, siren and alternating current supervision.
-Power supply input 14 Vac.

Zones:
-8 basic zones with end line resistance.
-Option to duplicate zones with resistance.
-16 zones max.
-Capacity to convert 1 or the 16 zones into wireless zones (just add the receiver).
-Supports 4 wire smoke detectors.
-The zones can be configured with or without end of line resistance.
-Allows various resistance values to ease the installation.
-No activity zone notification during the time the panel is disarmed.
-Internal battery for the clock.

Users:
-100 user codes.
-Every user can have 11 arming levels.
-The users can be of 4 or 6 digits.
-Coaccion code.
-Up to 100 proximity cards related with arming, disarming and access control.

Communication:
-Maximum 8 numbers for monitoring central and/or private.
-Select and send events through phone.
-Communication protocols SIA, CONTAC / ID 4 + 2.
-Communication with a private number option.
-Bidirectional voice module option.
-Compatible with 3rd generation systems 3i.
-Compatible with CS47LINK.
-1 year warranty.
-Suggested modem for UPLOAD / DOWNLOAD
– US robotics model 5637 (not included).
-Ideal for residential / commercial applications. Now HYBRID (Cabled / Wireless).

Requieres RT1440 voltage transformers.

Includes:
– ICON 8 K / B keypad.
-2 NEOQUAD movement detectors.
